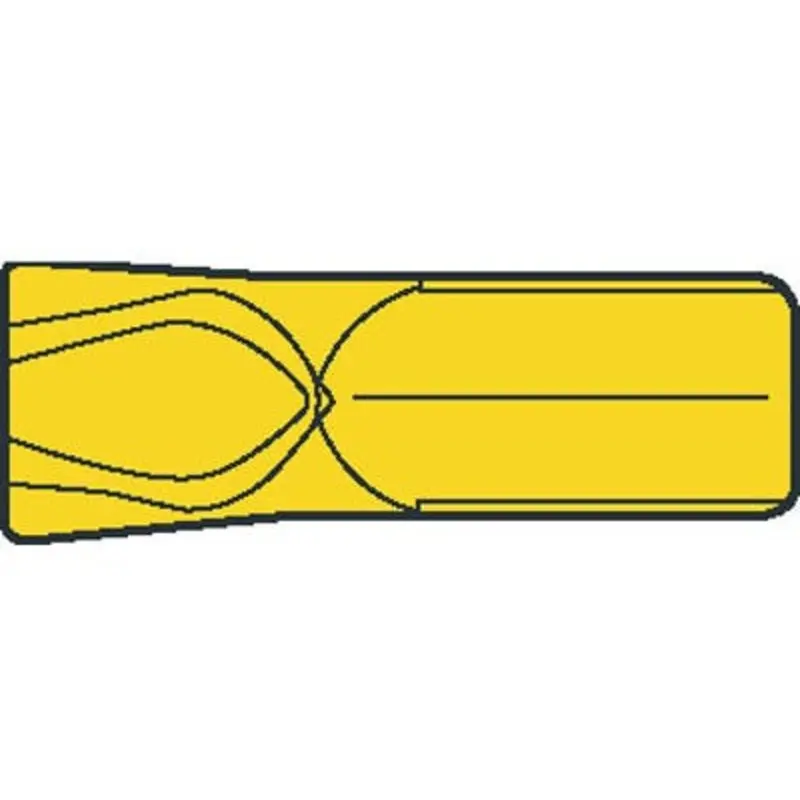

Seco 150.10-3R6-14 CP600 Parting Off Insert

Parting-off insert with a grade CP600 is a very tough micro grain grade intended for stainless steel and steel applicable but generally applicable when ever high edge toughness required e.g. more difficult interrupted cuts.

Brand :Seco

Manufacturer Part Number :02430544

Type :Parting Off Insert

Insert Width (mm) :3.1

Seat Size :3

Features & Benefits : Right insert hand
Angle of 6 in order to eliminate burrs and minimize the parting-off pip left on the workpiece
When using R-insert, the feed rate should be reduced by approximately 30%
Convex or concave surfaces will be avoided, when using R-insert, by reducing the feed rate
First choice for stainless steel
First choice for steel at medium-high feed rates
15 positive cutting rake angle with sharp edge

Material :Carbide

Coating/Finish :PVD

Grade :CP600

Width (mm) :3

Chipbreaker :Yes

Model :150.1-3R6-14
