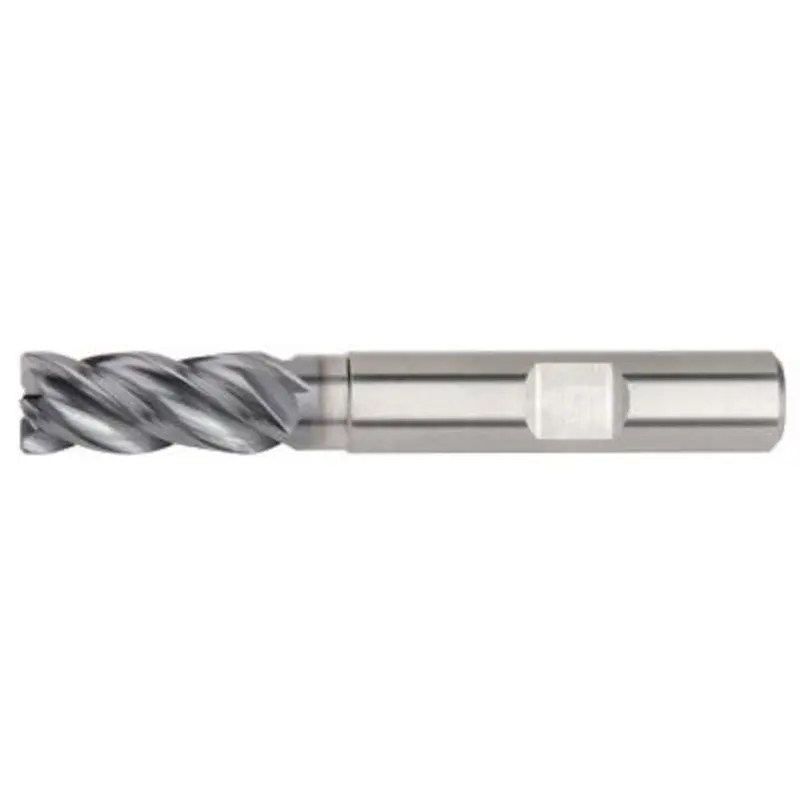

Kennametal 5mm KCPM15 4 Flute Carbide High Performance End Mill Harvi I

HARVI I end mill offers plunging, slotting and profiling at high feed rates for a wide range of materials. It is designed to provide maximum Metal Removal Rates (MRR) and to achieve superior surface conditions. A wide range of diameters and corner configurations, such as chamfer, radii and sharp edges, are available from stock. The new HARVI I neck further complements the HARVI I offering and increases manufacturing flexibility on deep cavities and long walls at high feed rates.

Brand :Kennametal

Manufacturer Part Number :6130874

Features & Benefits : Versatile solid carbide end mill for steels, stainless steel, cast iron, high temperature alloys
Solid carbide end mills cover a variety of operations, including dynamic milling
Solid carbide end mills features unequal flute spacing for chatter-free machining
Centre cutting for plunging and ramping operations
38 helix angle
Centre cutting

Length of Cut (in) :0.5118

Material :Solid Carbide

Number of Flutes :4

Coating/Finish :AlTiN

Shank Type :Cylindrical

Type :High Performance End Mill

Shank Diameter (mm) :6

Reach (mm) :18

Flute Length (mm) :57

Neck Diameter (mm) :4.70

Overall Length (mm) :57
