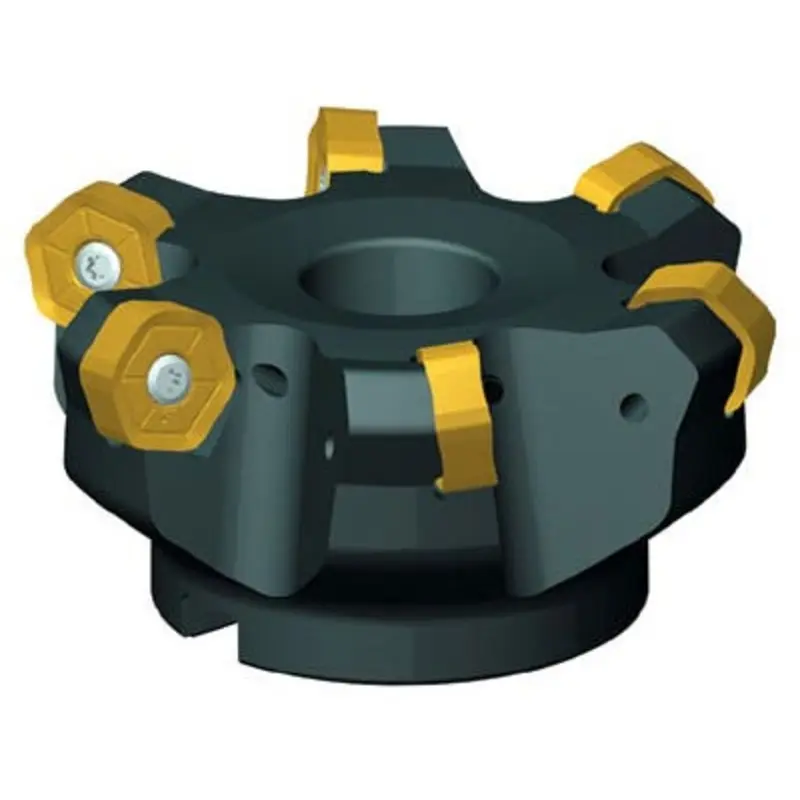

Kennametal 125mm Dodeka Indexable Milling Body

Dodeka shell mill is the most comprehensive face milling boosters on the market today. Twelve true cutting edges per insert mean low cost-per-edge and high productivity. With Beyond premium milling grades, achieve up to 30% higher metal removal rates s (MRR), 25% lower cutting forces due to soft cutting action and up to 35% better tool life in light to heavy machining.

Brand :Kennametal

Manufacturer Part Number :3325169

Cutting Diameter (in) :4.9210

Cutting Diameter (mm) :125

Features & Benefits : Twelve cutting edges per insert
Through coolant standard
Soft cutting action
45 angle

Maximum Cut Diameter (mm) :136

Takes Insert :HNG_J0905

Maximum Cutting Depth (mm) :4.5

Number of Inserts :10

Minimum Diameter of Cut (mm) :125

Type :Shell Milling Cutter

Product Code :KSHR125B10RS45HN09

Spigot Diameter (mm) :40

Overall Length (mm) :63
